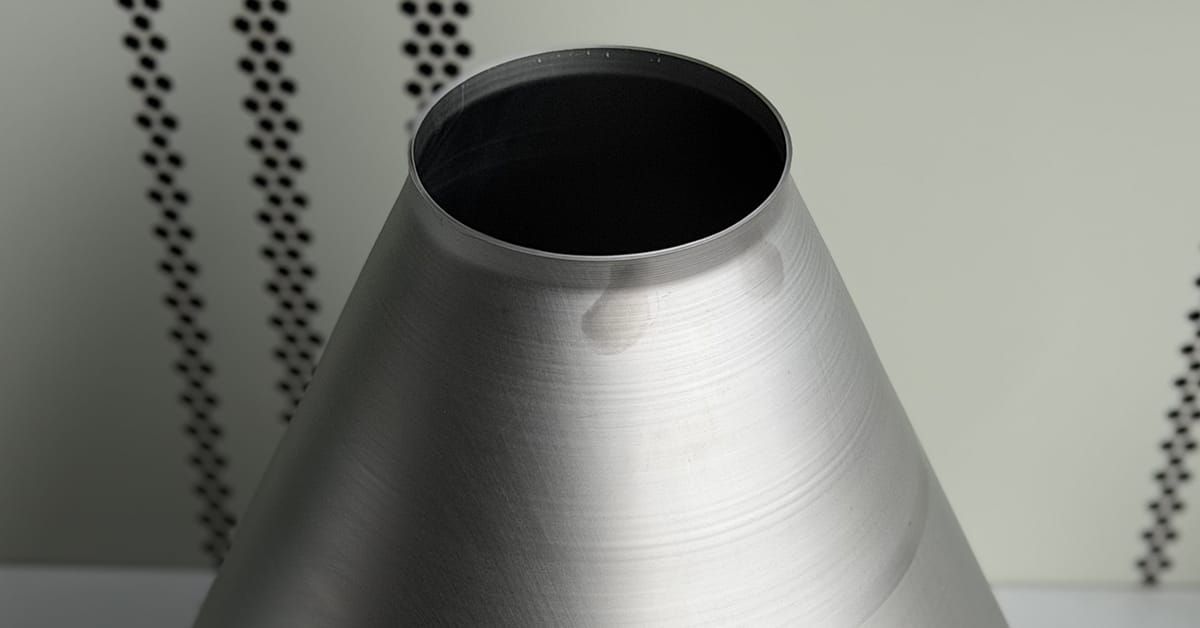

Food-Grade Stainless Steel Hopper
Manufactured to exceed sample standards, this SUS304 Food Grade Filling Hopper uses high-pressure die forming to ensure structural integrity. With a large-mouth closed edge design and mirror-polished interior, it prevents material buildup and ensures easy cleaning, meeting strict food safety requirements.
Table of Contents
- Aluminum Metal Spinning for Aerospace UAV Housings
- Aluminum Metal Spinning for UHV GIS Enclosures
- Lightweight Aluminum Plate Forming
- Aerospace Engine Housing with Precision Spinning and Welding
- Carbon Steel Metal Spinning for Heavy-Duty Stepped Cones
- SUS310S High-Temperature Spinning Part
- High-Strength Aluminum Plate Forming
- Large Capacity Metal Spinning for Chemical and Food Containers
- Heavy-Duty Rear Hub Disk
- Food-Grade Stainless Steel Hopper
- Copper Metal Forming for High-Voltage Electrical Components
View More

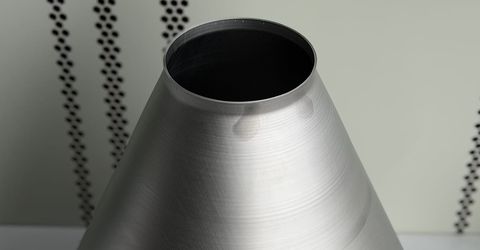

Food-Grade Stainless Steel Filling Hopper (SUS304 Hygienic Design)
Application – Food Processing & Filling Systems
Designed for food-grade filling, dosing, and material transfer systems, this SUS304 stainless steel hopper is engineered for environments requiring strict hygiene control, corrosion resistance, and easy cleanability, fully compliant with food safety production standards.
Advanced Forming – High-Pressure Die Forging Structure
Manufactured using high-pressure die forming (mold forging process) to ensure dense, defect-free stainless steel structure.
Engineering improvements over traditional fabrication:
- Eliminates flow line stress concentration defects
- Prevents lamellar tearing and weld-related contamination risks
- Ensures controlled metal flow alignment with stress direction
- Large-mouth integrated design with no dead corners (dead-zone free geometry)
Precision Control – Sample-Based Dimensional Verification
- Manufactured under sample-referenced quality standard system
- CMM (Coordinate Measuring Machine) full-surface scanning comparison
- Dimensional tolerance controlled within ±0.2 mm
Ensures consistent fitment for food processing line integration.
Surface Engineering – Food-Grade Electropolishing
- Internal surface treated with electropolishing (Ra ≤ 0.4 μm)
- Mirror-finished interior for non-stick and residue-free performance
- Designed for easy cleaning (CIP-compatible surfaces)
Eliminates material buildup and bacterial retention risks in food systems.
Material Performance – SUS304 Hygienic Stainless Steel
Strict control of food-grade SUS304 stainless steel (Ni 8–10.5%), delivering:
- Excellent resistance to acid and alkaline cleaning agents
- Long-term corrosion resistance in hygienic environments
- Stable performance under frequent washdown cycles
Engineering Value (Hygienic Design Focus)
Compared with welded or multi-piece hoppers, this solution provides:
- Zero dead-zone internal geometry for improved hygiene
- Reduced contamination risk in food processing lines
- Easier cleaning and maintenance (CIP-ready structure)
- Higher structural integrity under repeated filling cycles
Optimized Solution
A food-grade stainless steel hopper solution for hygienic filling systems, ensuring:
- Residue-free internal surfaces
- High corrosion resistance in cleaning environments
- Compliance with food safety manufacturing requirements
