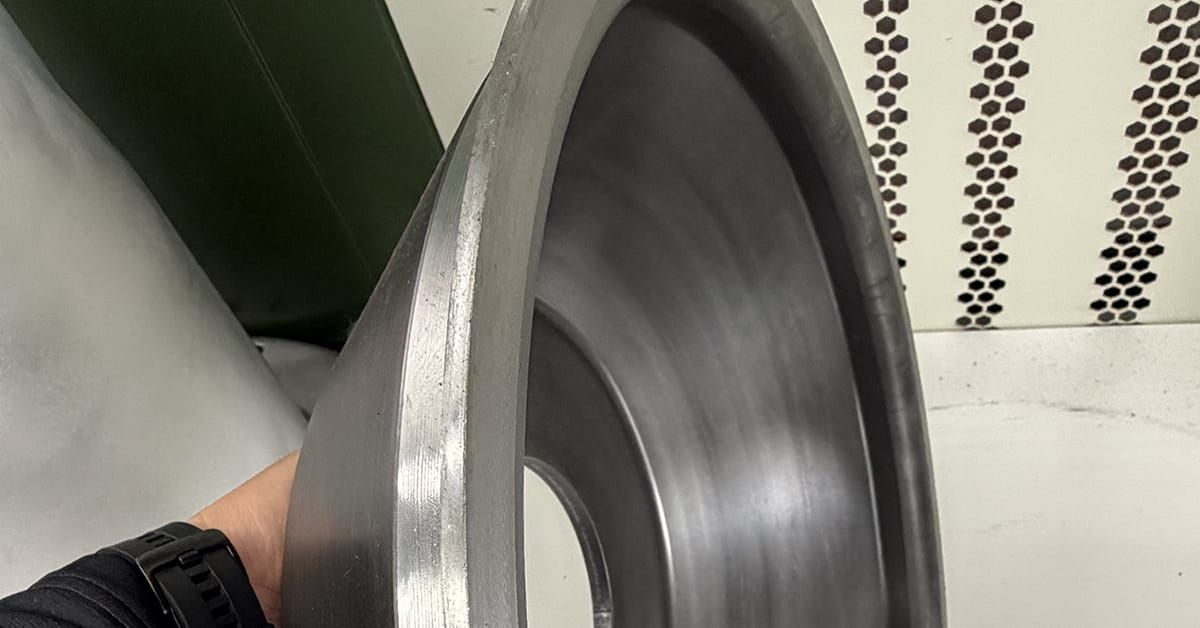

Heavy-Duty Rear Hub Disk
Designed for heavy-duty conveyors, this Q355B High-Strength Steel Rear Hub Disk serves as the "safety backbone" of the drum. Using precision stamping and forming, it withstands full-load startup and emergency braking without deformation or cracking. Ideal for mining and port logistics environments.
Table of Contents
- Aluminum Metal Spinning for Aerospace UAV Housings
- Aluminum Metal Spinning for UHV GIS Enclosures
- Lightweight Aluminum Plate Forming
- Aerospace Engine Housing with Precision Spinning and Welding
- Carbon Steel Metal Spinning for Heavy-Duty Stepped Cones
- SUS310S High-Temperature Spinning Part
- High-Strength Aluminum Plate Forming
- Large Capacity Metal Spinning for Chemical and Food Containers
- Heavy-Duty Rear Hub Disk
- Food-Grade Stainless Steel Hopper
- Copper Metal Forming for High-Voltage Electrical Components
View More
Heavy-Duty Conveyor Rear Hub Disk (Q355B Structural Steel Component)
Application – Mining & Port Bulk Material Handling Systems
Engineered for heavy-duty conveyor drum assemblies, this rear hub disk functions as a critical load-bearing safety component in high-stress environments such as mining operations, port logistics, and bulk material transportation systems.
Structural Engineering – High-Load Reinforced Design
Manufactured using integrated blanking and precision forming processes, the component is designed as a closed reinforcement structure for conveyor drums.
Optimized for extreme operating conditions:
- Withstands full-load start-up torque
- Resistant to emergency braking impact loads
- Eliminates risk of deformation and fatigue cracking under cyclic stress
Engineering Advantage:
Transforms Q355B steel strength into stable long-term structural reliability.
Precision Control for Rotational Stability
- Complies with GB/T 1184-K geometric tolerance standards
- End-face runout and flatness controlled within 0.1 mm/m
- Dedicated inspection for rotational symmetry and face alignment
Ensures stable operation in high-speed conveyor drum systems.
Surface Engineering – Stress Reduction Treatment
- Double-side mechanical grinding for full-edge deburring
- Edge radiusing to eliminate stress concentration points
- Clean end-face surface free of oxide scale, rust, and machining defects
Improves fatigue resistance under continuous loading conditions.
Material Performance – Q355B High-Strength Structural Steel
Strict material control based on GB/T 1591 standard Q355B steel, providing:
- Minimum yield strength ≥ 355 MPa
- Excellent impact resistance under heavy loads
- Stable performance in abrasive industrial environments
Designed specifically for high-duty conveyor and bulk handling systems.
Engineering Value (Why It Matters)
Compared with conventional welded or low-grade hub structures, this solution delivers:
- Higher resistance to startup shock and braking stress
- Reduced deformation risk in continuous operation
- Extended service life in abrasive and high-load environments
- Improved reliability of conveyor drum assemblies
Optimized Solution
A high-strength conveyor hub disk solution for mining and port logistics, ensuring:
- Structural integrity under extreme load conditions
- High-precision rotational stability
- Long-term fatigue resistance in harsh environments
